Sheet Packaging

We ship our stainless steel sheet metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements.

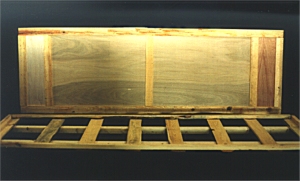

Air Skid - Code #4

stainless steel sheet metal packagingstainless steel sheet metal packaging

  • 2-2'x3' runners, 8-1'x6' cross boards, 2'x3' framed
  • 1/8" Framed masonite board top
  • Double wall cardboard top/bottom
  • 3/4" bands (2 per Length)/3 per width)

Sizes

  • 36" x 96" - tare weight 110lbs
  • 36" x 120" - tare weight 121lbs
  • 48" x 96" - tare weight 116lbs
  • 48" x 120" - tare weight 131lbs

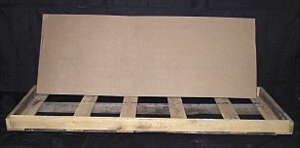

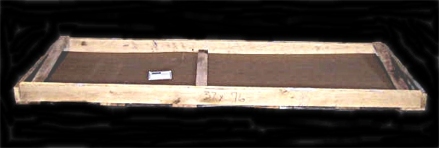

Box Skid - Code #2

stainless steel sheet metal packagingstainless steel sheet metal packaging

  • 2 - 4'x4' runners, 6 - 1' x 6' cross boards, 2' x 4' framed double wall cardboard top/bottom
  • 3/4" bands (2 per length / 3 per width)

Uses

For material .040 and under, high/temp nickel alloy orders and long distance

Sizes

  • 36" x 96" - tare weight 130lbs. - 150lbs
  • 36" x 120" - tare weight 180lbs. - 210lbs
  • 48" x 96" - tare weight 180lbs. - 210lbs
  • 48" x 120" - tare weight 210lbs. - 230lbs

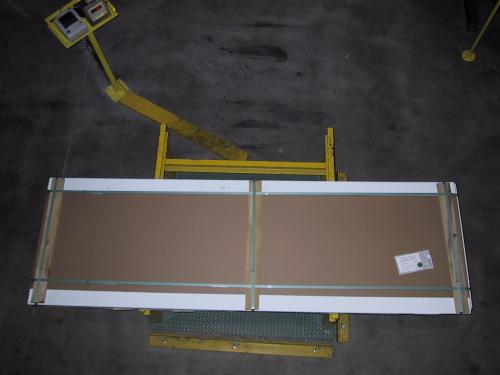

Flat Skid - Code #1

stainless steel sheet metal packaging

  • 2 - 4'x4' runners, 6 - 1'x6' cross boards
  • Double wall cardboard top / bottom
  • Edge protectors all sides
  • 3/4" bands (2 per length) / 3 bands per width)

Uses

For local shipments only and cut to length orders with a box cover over top

Sizes

  • 36" x 96" - tare weight 130lbs
  • 36" x 120" - tare weight 165lbs
  • 48" x 96" - tare weight 155lbs
  • 48" x 120" - tare weight 180lbs

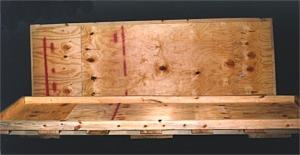

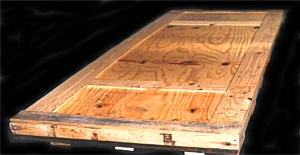

Ocean Skid Solid Bottom - Code #3

stainless steel sheet metal packagingstainless steel sheet metal packaging

All ocean skids are constructed from heat-treated Southern Yellow Pine in compliance with IPPC's ISPM15 guidelines.

  • 3 - 2'x4' runners, 2'x6' cross boards, 2'x4' framed
  • 3/4" Solid plywood top / bottom
  • Double wall cardboard top / bottom with waterproof paper
  • 3/4" bands (2 per length) / 4 bands per width)

Sizes

  • 36" x 120" - tare weight 330lbs
  • 48" x 120" - tare weight 428lbs
  • 48" x 120" - tare weight 428lbs

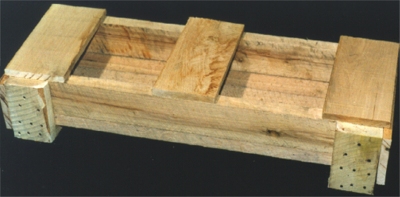

Shear Box - Code #10

stainless steel sheet metal packaging

  • 2'x 4' runners, 2'x4' framed
  • 2' x 4' solid bottom, cardboard top
  • 3/4" bands (as required for width)

Sizes

  • 1 - 2' x 4'H x 120" - tare weight 120lbs
  • 2 - 2' x 4'H x 120" - tare weight 150lbs
  • 48" x 96" - tare weight 116lbs
  • Special sizes available on request
